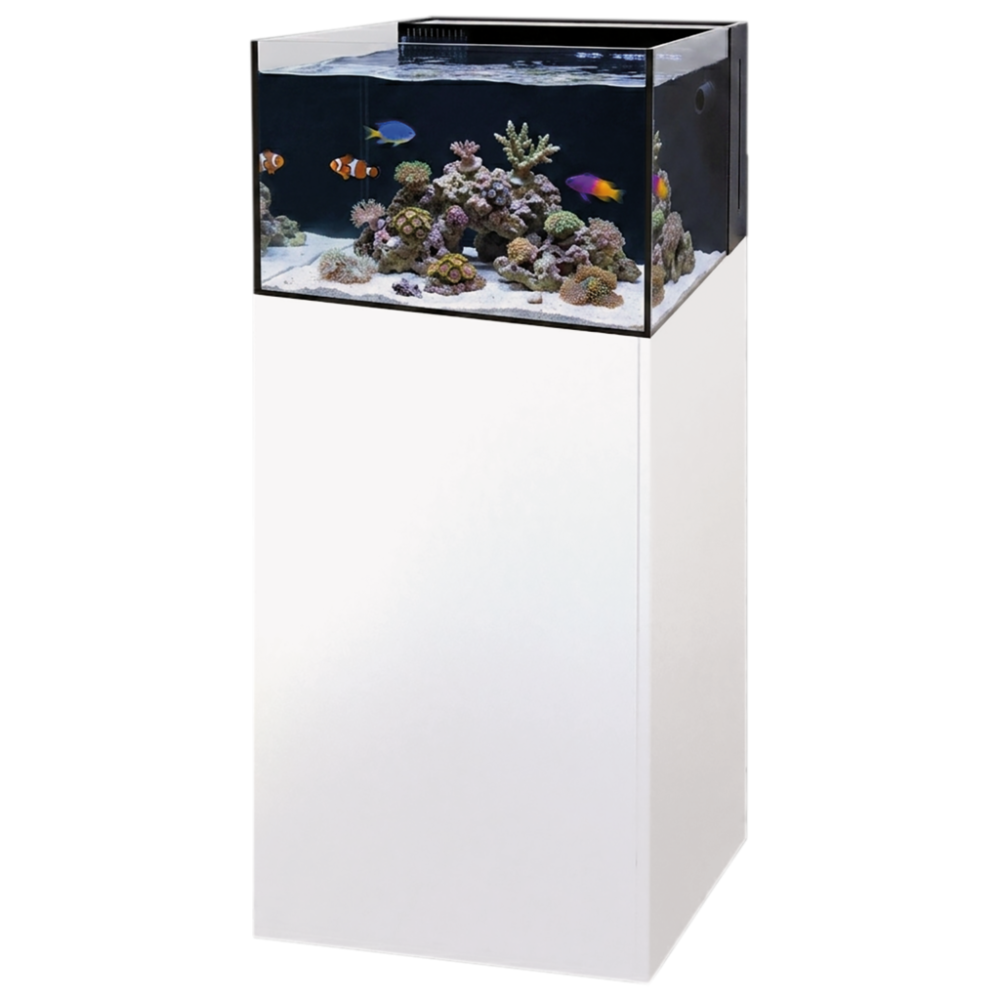

Yasha Lagoon 100 - Aqua Medic

Elegant design - innovative technology!

Complete saltwater aquarium with high-quality glass finish. Impressively modern design with 45° glass edges. Sophisticated components ensure reliable operation and full functionality. The unobtrusive integrated glass filter tank requires minimal maintenance. The ingenious design of the filter unit allows the entire filter to be concealed inconspicuously by a glass cover. The base cabinet is supplied as a flat-pack kit and can be assembled in just a few simple steps.

• incl. base cabinet
• low profile for creating lagoon-style landscapes
• the lagoon design offers a fantastic top-down view for observing the corals
• efficient light penetration thanks to the low profile

Equipment / scope of delivery

• glass tank made from 5 mm "super white glass"
• skimmer: EVO 101 very quiet and efficient, adjustable protein skimmer (approx. 3,5 w)
• circulation pump: DC Runner 600  "ultra silent" thanks to optimized control electronics (max. 8 w), energy-saving 24 V DC motor, polished ceramic bearings and axles for quiet and maintenance-free continuous operation, can be used as a circulation and current pump
• filter: integrated rear-mounted filter system with glass cover to accommodate biological and mechanical filters (e.g. multi reactor S Gen II), incl. pre-filter chamber and clear water chamber to accommodate e.g. Refill system easy 2.0 or mini heater, incl. surface outlet and water level indicator

Optional:

• SmartDrift 3.1
• multi reactor S Gen II
• mini heater (75 w recommended)

Glass thickness (mm)

5

Pump (max. 8 W)

DC Runner 600

Skimmer (approx. 5 W)

EVO 101

Water volume (l) approx.

105

Water level app. (mm)

320

Internal dimensions of filter basin (l x w x h) app. (mm)

490 x 95 x 350

Dimensions aquarium (l x w x h) app. (mm)

500 x 600 x 350

Dimensions base cabinet (l x w x h) app. (mm)

500 x 600 x 1.000
